| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST310-4T37G |
| Minimum Order Quantity: | 1PCS |
| Price: | $620-$636 |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Material: | ABS+PC | Power: | 30KW |
|---|---|---|---|
| Voltage: | 380V | Phase: | 3 Phase |
| Color: | Huawei Gray | Type: | AC/AC Converters |
| Machine Case: | Aluminum Coated Zinc Plate,cold Rolled Plate Powder Spraying | Application: | Fans, Water Pump, Industry |
| High Light: | 37KW three phase AC drive VFD,three phase AC drive inverter,37KW 60hz to 50hz inverter |
||

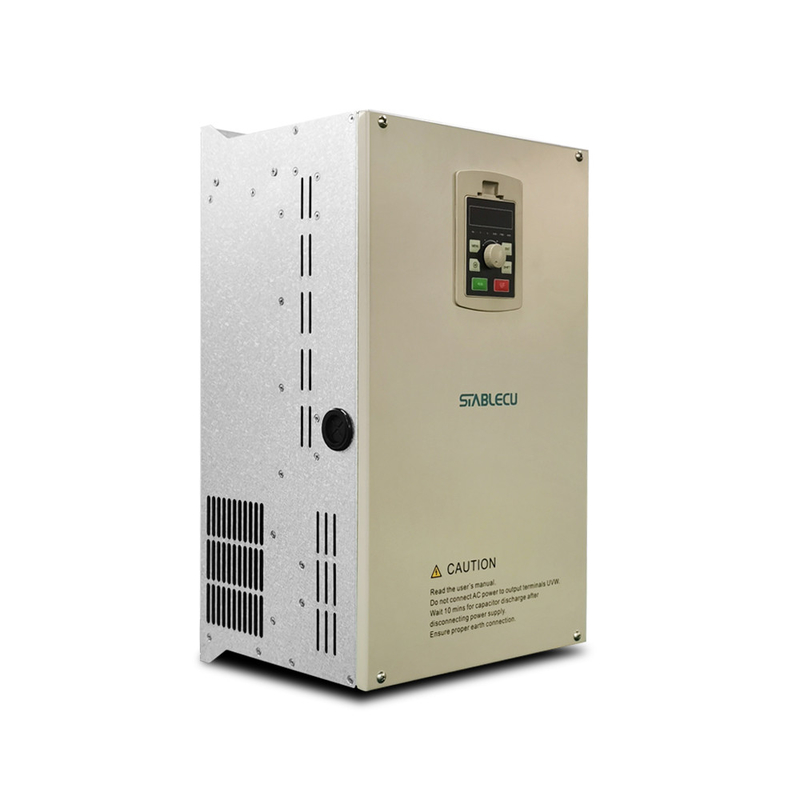

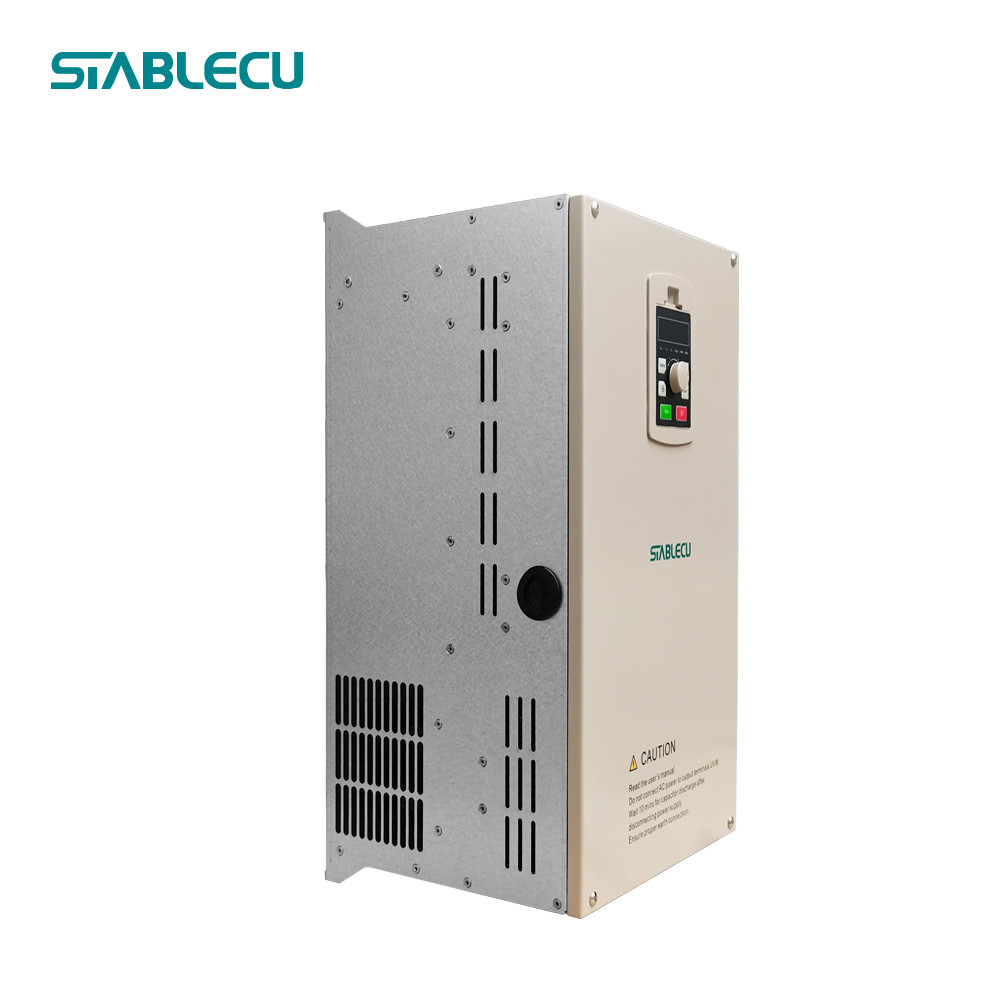

37KW Frequency Converter 60HZ To 50HZ 3 Phase For Water Pump Irrigation
Introduction:
1. Choose first-tier suppliers in the industry for capacitors, fans, electronic components, PCB boards, etc., to ensure the health and stability of the product throughout its life cycle. Using imported Infineon IGBT,
2. The operation is simple and convenient.
3. Built-in RS485 interface. And supports Modbus communication protocol.
4. Strong overload capacity, 150% rated current for 60 seconds, 180% rated current for 10 seconds; 200% rated current for 0.54 seconds.
5. The four fault records can effectively record the maximum current, maximum voltage, and maximum temperature of the last four times, which is helpful for customers to analyze and deal with faults and improve after-sales efficiency.
Quick Details:
| Model | 310-4T37G |
| Rated Voltage | 3 phase AC 380V-480V |
| Output Frequency Range | 0-300hz |
| Control Mode | V/F Control |
| Product Name | AC Drive |
| Input Voltage | 380V |
| Input Frequency | 50/60HZ |
| Output Frequency | 0-300HZ |
| Warranty | 18 months |
Model Specification and Technical Data
| Frequency converter Model | The power rating(kW) | The output current(A) | The input current(A) | Adaptation motor(kW) | The braking unit |
| ST310-4T0.75GB | 0.75 | 2.3 | 3.4 | 0.75 | |
| ST310-4T1.5GB | 1.5 | 3.8 | 5.0 | 1.5 | |
| ST310-4T2.2GB | 2.2 | 5.5 | 6.0 | 2.2 | |
| ST310-4T3.7GB | 3.7 | 9.0 | 10.5 | 3.7 | |
| ST310-4T5.5GB | 5.5 | 13 | 14.6 | 5.5 | |
| ST310-4T7.5GB | 7.5 | 17 | 20.5 | 7.5 | |
| ST310-4T11GB | 11 | 24 | 29 | 11 | |
| ST310-4T15GB | 15 | 30 | 35 | 15 | |
| ST310-4T18.5GB | 18.5 | 39 | 44 | 18.5 | |
| ST310-4T22GB | 22 | 45 | 50 | 22 | |
| ST310-4T30G | 30 | 60 | 65 | 30 | |
| ST310-4T37G | 37 | 75 | 80 | 37 | |
| ST310-4T45G | 45 | 91 | 95 | 45 | |
| ST310-4T55G | 55 | 112 | 118 | 55 | |
| ST310-4T75G | 75 | 150 | 157 | 75 | |
| ST310-4T90G | 90 | 176 | 160* | 90 | |
| ST310-4T110G | 110 | 210 | 192* | 110 | |
| ST310-4T132G | 132 | 253 | 232* | 132 | Built-out |
| ST310-4T160G | 160 | 310 | 285* | 160 | |
| ST310-4T185G | 185 | 350 | 326* | 185 | |
| ST310-4T200G | 200 | 380 | 354* | 200 | |
| ST310-4T220G | 220 | 430 | 403* | 220 | |
| ST310-4T250G | 250 | 470 | 441* | 250 | |
| ST310-4T280G | 280 | 520 | 489* | 280 | |
| ST310-4T315G | 315 | 590 | 571* | 315 | |
| ST310-4T355G | 355 | 650 | 624* | 355 | |
| ST310-4T400G | 400 | 725 | 699* | 400 | |
| ST310-4T450G | 450 | 755 | 770* | 450 | |
| |||||
Details Image:
FAQ
1. Who are we?
We are a manufacturer based in Guangdong, China, start from 2009, sell to Domestic Market(100.00%). There are a total of about 201-300 people in our office.
2. How can we guarantee the quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3. What can you buy from us?
Ultrasonic Generator, PLC/Motion Controller, Servo Motor And Stepper Motor, Frequency Converter, Automation System Development And Complete Set Of Electric Box.
4. Do you offer customization services?
Yes, we can customize the products according to your requirements. Please send us an inquiry, your inquiry will be replied within 12 hours.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese.
