| Place of Origin: | China |
|---|---|
| Brand Name: | STABLECU |
| Certification: | CE |
| Model Number: | ST300-2S1.5GB |
| Minimum Order Quantity: | 1PCS |
| Packaging Details: | 1pcs/Polybag,100pcs/big polybag, 300pcs/ctn |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | ABS+PC | Power: | 0.75KW |
|---|---|---|---|
| Voltage: | 220V/380V | IP: | 20 |
| Color: | Huawei Gray | Type: | AC |
| OEM: | Yes | ||
| High Light: | 2hp VFD single phase,1.5KW VFD for single phase motor,2HP VFD for single phase motor |
||
Mini VFD For Motor 220V Frequency Inverter Single Phase Output 1.5KW 2HP
Introduction of variable frequency drive
ST300 series inverter is a high-performance vector inverter, which is newly developed based on customer demand
and market research and can be used to control and adjust single or three-phase speed. Optional voltage 220v or 380v,
used for AC asynchronous motors.
With good load adaptability, high-precision speed controllability, low-speed high-torque output performance, excellent overload capacity,
and rich setting functions. The size design of this economical and applicable inverter is made smaller, which is conducive to the user to
reasonably plan the space of the electric box.
Quick details of variable frequency drive
|
item
|
Frequency Inverter |
| Place of Origin | China |
|
Brand Name
|
STABLECU |
| Model Number |
ST300-2S0.75GB/1.5GB/2.2GB
|
| Warranty | 18 Months |
| Type | speed driver/AC driver |
| Certification |
CE
|
| Customized | Yes |
| Rated Power |
0.75kw, 1.5kw, 2.2kw
|
| Nominal Voltage | 220v/380V |
| Power | 0.75kw / 1.5kw / 2.2kw |
| power phase number | 1/3 Phase |
| Input rated voltage and frequency | 1PH AC 220V 50/60HZ / 3PH AC380V 50/60Hz |
| Allowable voltage range | 220V/ 380V |
| Output voltage |
220V, 380V: 380V-480V
|
| Control Mode | Vector Control |
| Output frequency | 0.1~300.0 Hz |
Indicator description of variable frequency drive
| Indicator mark | The name of the | Meaning | Color |
| Hz | Frequency indicator light | On: The current parameter is running frequency Blinking: The current display parameter is the set frequency |
Green |
| A | Current indicator light | On: Current is displayed | Green |
| MON | Run command mode indicator | On: The operation panel runs the command in the specified mode Off: Indicates the specified mode of the terminal running command Blinking: The upper computer runs the specified command mode |
Green |
| RUN | Operating status indicator light | On: The drive is running Off: The drive is stopped Blinking: The drive is being stopped |
Green |
| FWD | Positive/reverse indicator light | On: The drive is in positive rotation Off: The driver is in reverse direction when it is running |
Green |

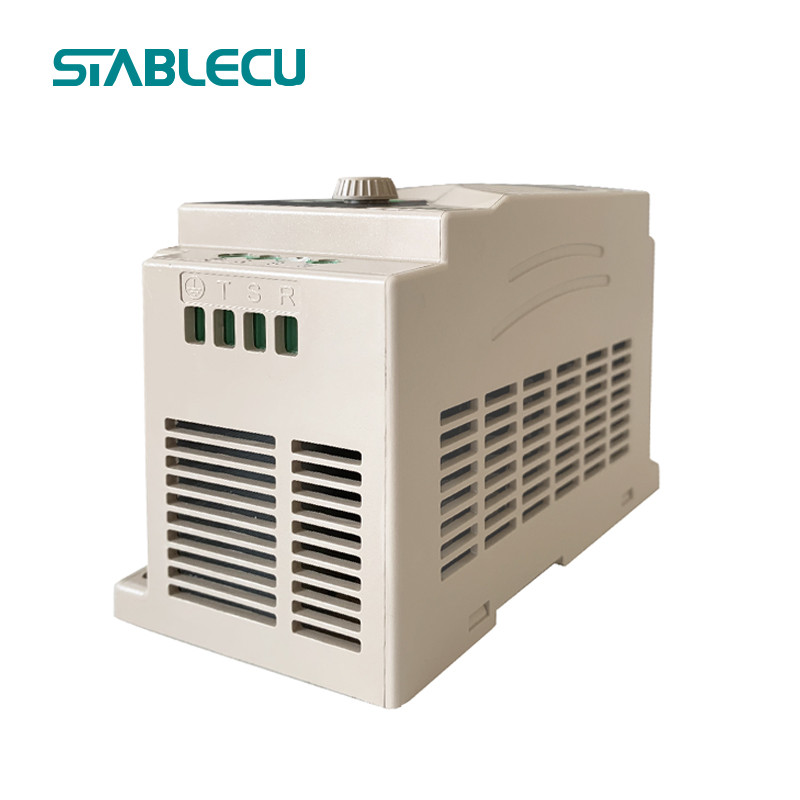

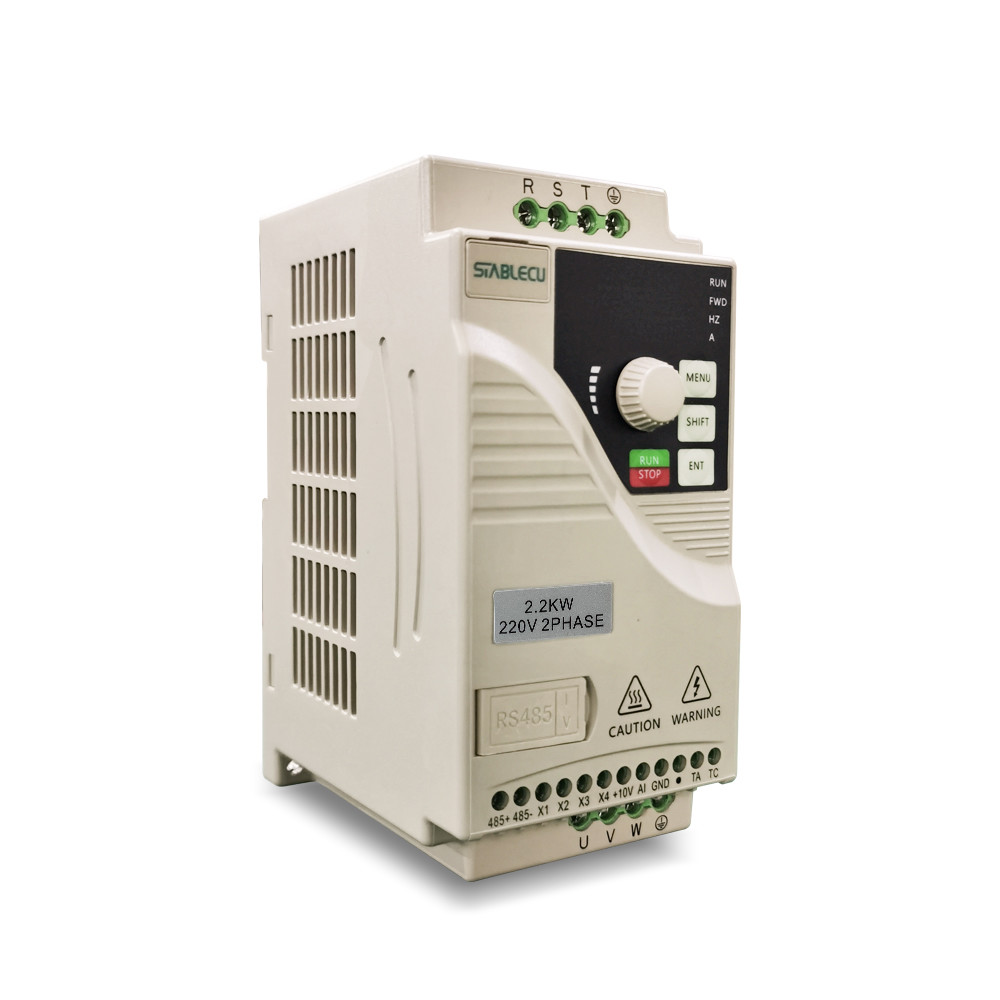

Detailed images of variable frequency drive
Application of variable frequency drive
It is used to drive various automation production equipment involving textile, machine tool equipment, water pump, fan,
paper-making, food machine, packing machine, etc.
